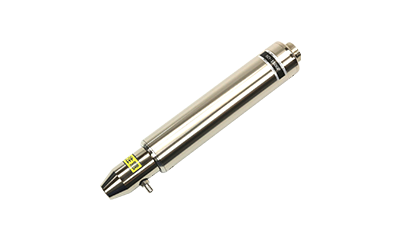

0755-36856361(SZ)Manual type e-driver with DC motor
Model：SD-500FC / SD-1500F / SD-5000F / SD-10000F / SD-18000F
Features：DC motor model, High accuracy tightening
Main Purposes：For Smart Phones, PCs, HDDs and Wrist watches
-
Hotline852-24181122 -
Share
Model：SD-500FC / SD-1500F / SD-5000F / SD-10000F / SD-18000F
Features：DC motor model, High accuracy tightening
Main Purposes：For Smart Phones, PCs, HDDs and Wrist watches
| E-driver model | SD-1500MF | SD-5000MF | SD-10000MF | |
|---|---|---|---|---|
| Controller model | CT-F／CT-FA | |||
| Torque range | kgf・cm | 0.25～1.45 | 0.95～5.13 | 1.9～10.0 |
| N･m | 0.025～0.145 | 0.095～0.513 | 0.19～1.00 | |
| Speed[rpm] | 432～1840 | 247～1280 | 125～655 | |
| Screw size (For reference) | M1.0～M1.7 | M1.7～M3 | M3～M4 | |
| Bit clamp size | φ4mmD | φ4mmD | 六角6.35mm | |
