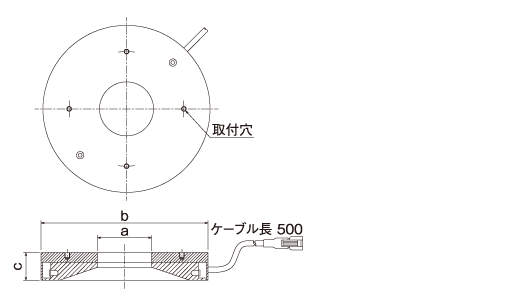

| Model | Color | Power consumption (Max.)(W) | Max. Voltage Setting For SAG series | Dimensions (mm) | Mounting Hole | |||
|---|---|---|---|---|---|---|---|---|
| a | b | c | Pitch Circle Diameter | Screw Size | ||||
| HDRP-20KHR | R | 3.9 | 70 | φ20 | φ74 | 18 | 50 | 4-M3x4mmDP |
| HDRP-20KH□ | DW, B, G | 7.7 | FF | φ20 | φ74 | 18 | 50 | 4-M3x4mmDP |
| HDRP-33KHR | R | 2.9 | 6F | φ33 | φ102 | 17 | 70 | 4-M3x4mmDP |
| HDRP-33KH□ | DW, B, G | 5.8 | FF | φ33 | φ102 | 17 | 70 | 4-M3x4mmDP |
| HDRP-50KHR | R | 4.1 | 70 | φ50 | φ142 | 17 | 70 | 4-M3x4mmDP |
| HDRP-50KH□ | DW, B, G | 8.2 | FF | φ50 | φ142 | 17 | 70 | 4-M3x4mmDP |
| ※□(G＝Green, B＝Blue, DW＝White) ※For DC24V Available. Ask to Sales | ||||||||
PWM Indirect Flat Ring Type
Model：HDRP-33KF / HDRP-44KF
Features：
Main Purposes：
