PWM Backlight Type-KORIN ELECTRONIC Co.,LTD

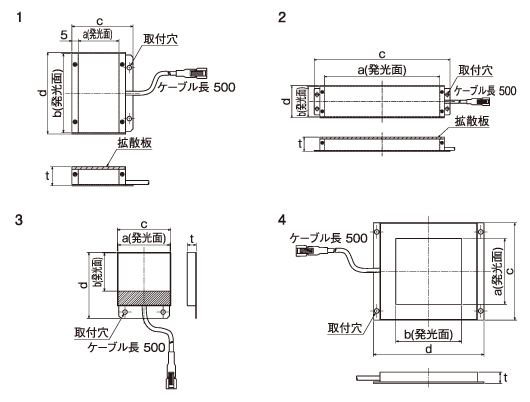

Model	*	Color	PowerConsumption Max.(W)	Max.VoltageSetting For SAG series	Drawing	Dimensions(mm)					Mounting Hole
Model	*	Color	PowerConsumption Max.(W)	Max.VoltageSetting For SAG series	Drawing	a	b	c	d	t	Pitch Circle Diameter	Hole
HDBP-32×32R		Red	1.5	74	1	32	32	48	34	11	15	2-φ3.5
HDBP-32×32DW		White	1.8	FF		32	32	48	34	15	15	2-φ3.5
HDBP-32×32■		B, G	1.8	DC		32	32	48	34	15	15	2-φ3.5
HDBP-62×32R		Red	2.9	75		32	62	48	64	11	40	2-φ3.5
HDBP-62×32DW		White	3.6	FF		32	62	48	64	15	40	2-φ3.5
HDBP-62×32■		B, G	3.6	DD		32	62	48	64	15	40	2-φ3.5
HDBP-92×32R		Red	4.4	75	2	92	32	114	34	11	108×15	4-φ3.5
HDBP-92×32DW		White	5.4	FF		92	92	114	34	15	108×15	4-φ3.5
HDBP-92×32■		B, G	5.4	E0		92	92	114	34	15	108×15	4-φ3.5
HDBP-122×32R		Red	5.8	76		122	32	144	34	11	138×15	4-φ3.5
HDBP-122×32DW		White	7.2	FF		122	32	144	34	15	138×15	4-φ3.5
HDBP-122×32■		B, G	7.2	DF		122	32	144	34	15	138×15	4-φ3.5
HDBP-62×62R		Red	5.8	76	1	62	62	78	64	11	40	2-φ3.5
HDBP-62×62DW		White	7.2	FF		62	62	78	64	15	40	2-φ3.5
HDBP-62×62■		B, G	7.2	E3		62	62	78	64	15	40	2-φ3.5
HDBP-92×62R		Red	8.7	76	2	92	62	114	64	11	108×40	4-φ3.5
HDBP-92×62DW		White	10.8	FF		92	62	114	64	15	108×40	4-φ3.5
HDBP-92×62■		B, G	10.8	E8		92	62	114	64	15	108×40	4-φ3.5
HDBP-122×62R		Red	11.6	77		122	62	144	64	11	138×40	4-φ3.5
HDBP-122×62DW		White	14.4	FF		122	62	144	64	15	138×40	4-φ3.5
HDBP-122×62■		B, G	14.4	E0		122	62	144	64	15	138×40	4-φ3.5
HDBP-92×92R		Red	13	78		92	92	114	94	11	108×60	4-φ3.5
HDBP-92×92DW		White	16.2	FF		92	92	118	102	16.5	110×60	4-φ3.5
HDBP-92×92■		B, G	16.2	E6		92	92	118	102	16.5	110×60	4-φ3.5
HDBP-122×92R		Red	17.3	79		122	92	144	94	11	138×60	4-φ3.5
HDBP-122×92DW		White	21.6	FF		122	92	148	102	16.5	140×60	4-φ3.5
HDBP-122×92■		B, G	21.6	ED		122	92	148	102	16.5	140×60	4-φ3.5
HDBP-122×122R		Red	23.1	7B		122	122	144	124	11	138×80	4-φ3.5
HDBP-122×122DW		White	28.8	FF		122	122	148	132	16.5	140×80	4-φ3.5
HDBP-122×122■		B, G	28.8	F3		122	122	148	132	16.5	140×80	4-φ3.5
HDBP-25×25SR	*	Red	0.3	6D	3	25	25	26	45	7	15	2-φ3.5
HDBP-25×25S□	*	B, G, DW	0.5	FF		25	25	26	45	7	15	2-φ3.5
HDBP-41×30SR	*	Red	0.5	6D		41	30	42	52	7	30	2-φ3.5
HDBP-41×30S□	*	B, G, DW	1.2	FF		41	30	42	52	7	30	2-φ3.5
HDBP-50×50SR	*	Red	2	6E	4	50	50	74	84	8.5	60×79	4-φ3.5
HDBP-50×50S□	*	B, G, DW	3.9	FF		50	50	74	84	8.5	60×79	4-φ3.5
HDBP-100×80SR	*	Red	3.4	6F		100	80	134	122	8	100×110	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-100×80S□	*	B, G, DW	6.8	FF		100	80	134	122	8	100×110	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-100×100SR	*	Red	3.9	70		100	100	134	142	8	100×130	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-100×100S□	*	B, G, DW	7.7	FF		100	100	134	142	8	100×130	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-180×135SR	*	Red	5.8	71		180	135	214	177	8	180×166	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-180×135S□	*	B, G, DW	11.6	FF		180	135	214	177	8	180×166	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-200×150SR	*	Red	6.8	72		200	150	232	190	8	200×180	4-φ3.5DRILLφ6CBORE4.5DEEP
HDBP-200×150S□	*	B, G, DW	13.5	FF		200	150	232	190	8	200×180	4-φ3.5DRILLφ6CBORE4.5DEEP
※*Thin Type ※■(B=Blue, G=Green) ※□(DW=White, B=Blue, G=Green)
