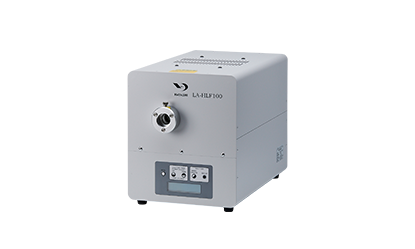

High Luminosity Laser diode Light Source

Model:LA-HLF100

Features:Double intensity of 350W metal halide lamp, Long life, Filter changer available

Main Purposes:For Machine vision AOI(Automated Optical Inspection) such as glass, functional sheet and optical film

Recommended
  • Discription
  • Catalog

Specifications

Parameters | ModelLA-HLF100
Input Voltage (AC)AC90-240V±10%, 50/60Hz
Power consumption(Max.)350W
Expected LED life20,000H (The avarage time until light intensity atenuats to 50% of the initial level)
Luminous, Color temp.Approx. 8,000lm※1,  7,500K
Intensity adjustable steps256 steps (8bit)
Internal filter changerRed, Green, Blue, White by front panel or remote
Indicator lampWhen tuerned on the power, green LED is indicated on the front panel
Cooling methodCooling fan
Operating ConditionsTemp. 5 to 35℃, Humidity below 70%
FunctionsOver heat protection, Remote control, Hour meter

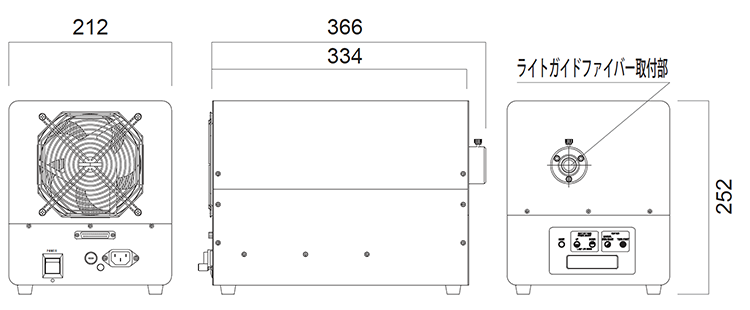

DimensionsW212 x D334 x H240(mm) ※excluding projecting parts
Net WeightApprox. 11kg

※1The initial lighting of reference. Not guaranteed value
